Precision in Motion. Performance in Design.
FrontLine elite 29inch .
Engineered for Precision.
Built to Conquer.
Engineered
for Precision.
Built to Conquer.
- FEATURES

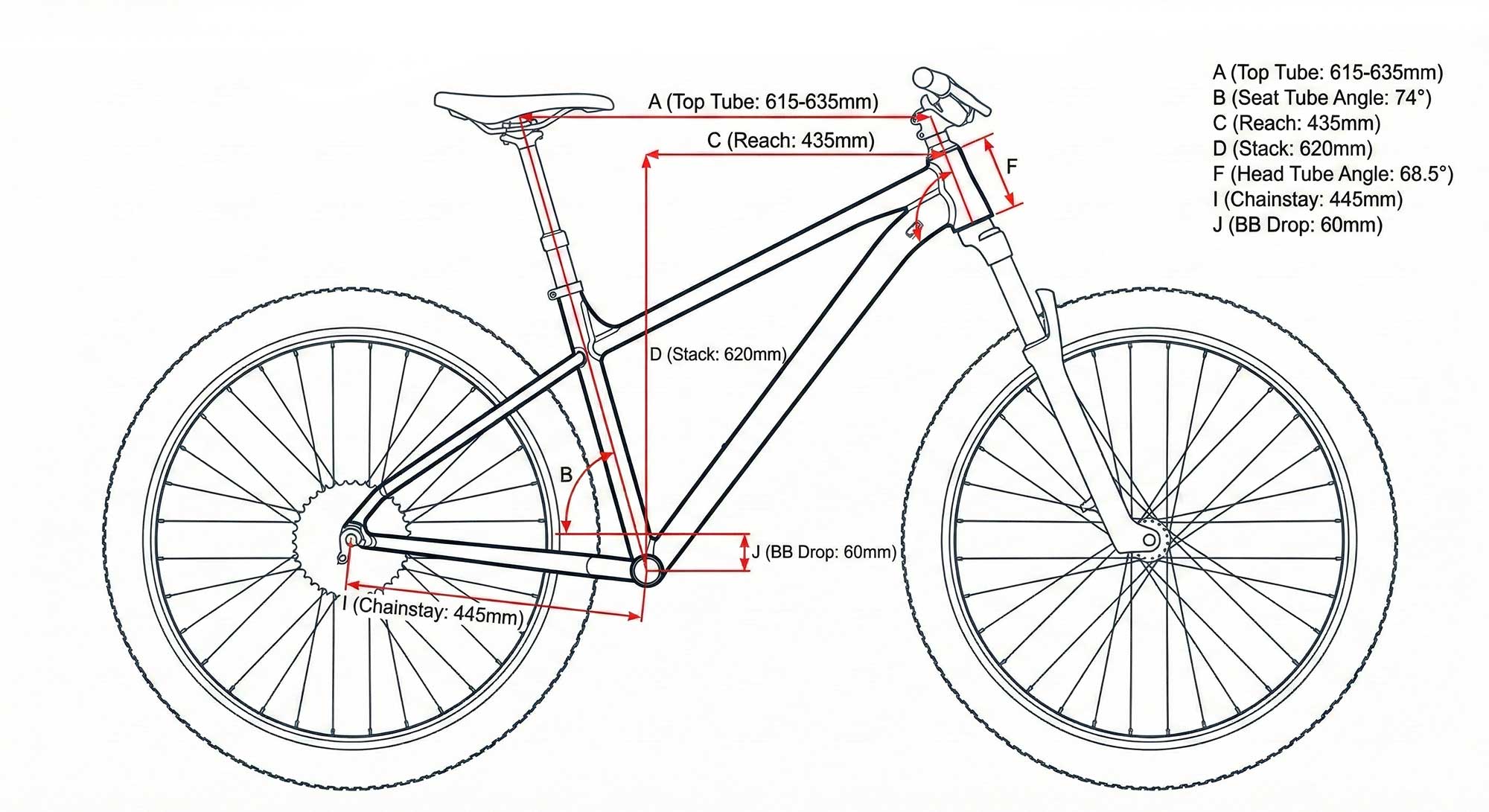

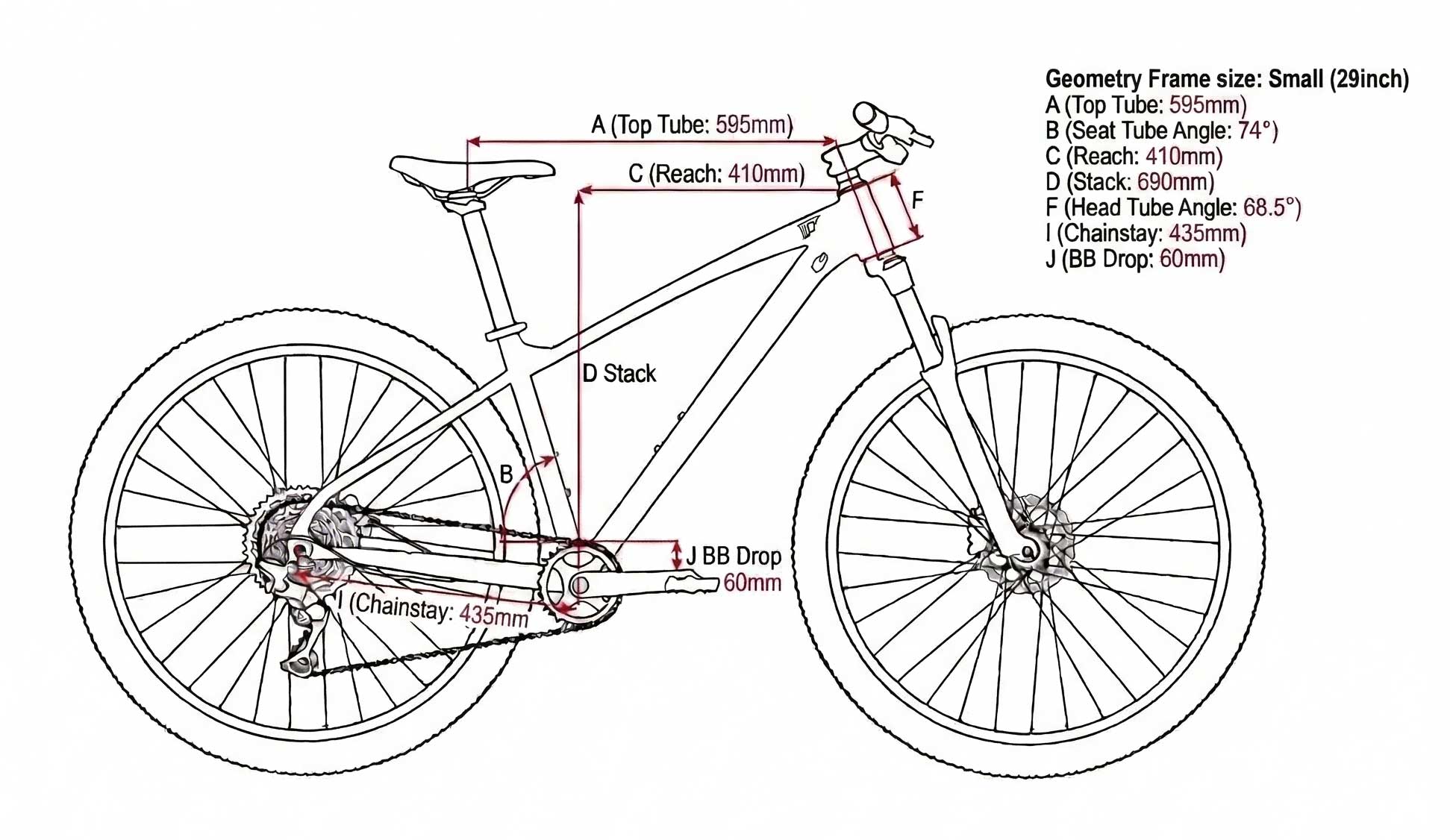

- GEOMETRY - SMALL

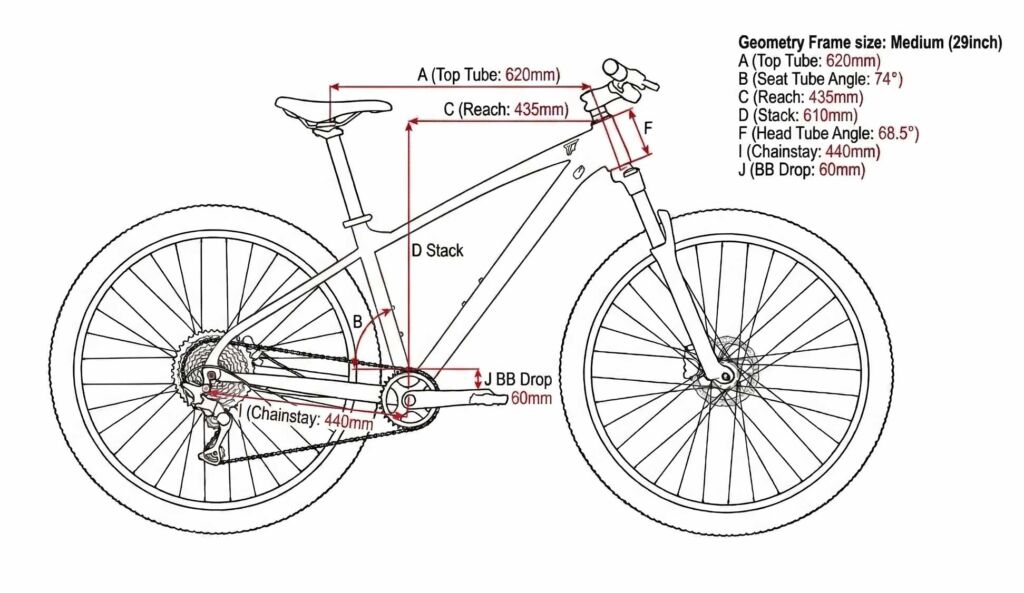

- GEOMETRY - MEDIUM

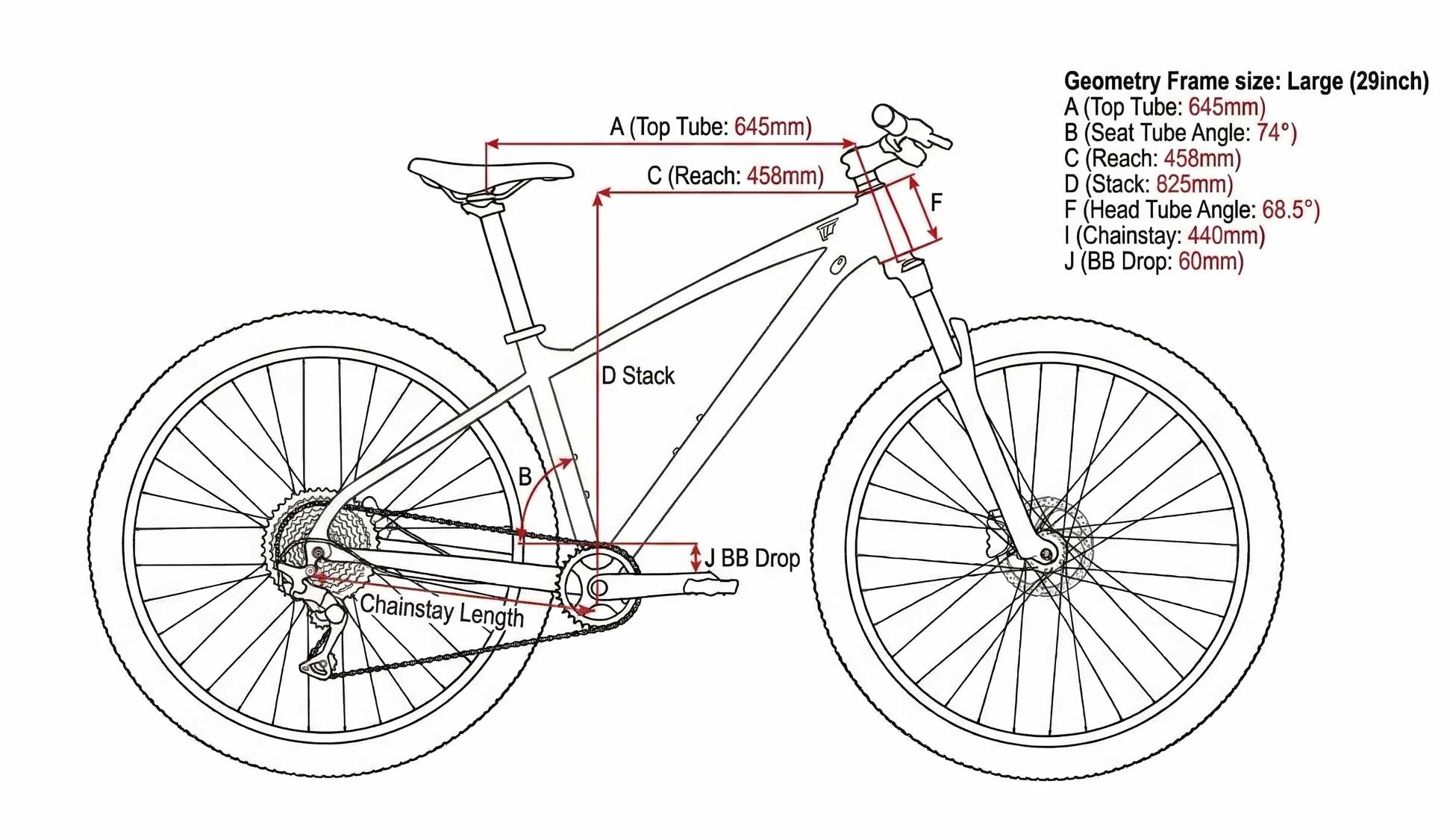

- GEOMETRY- LARGE
- SPECIFICATIONS

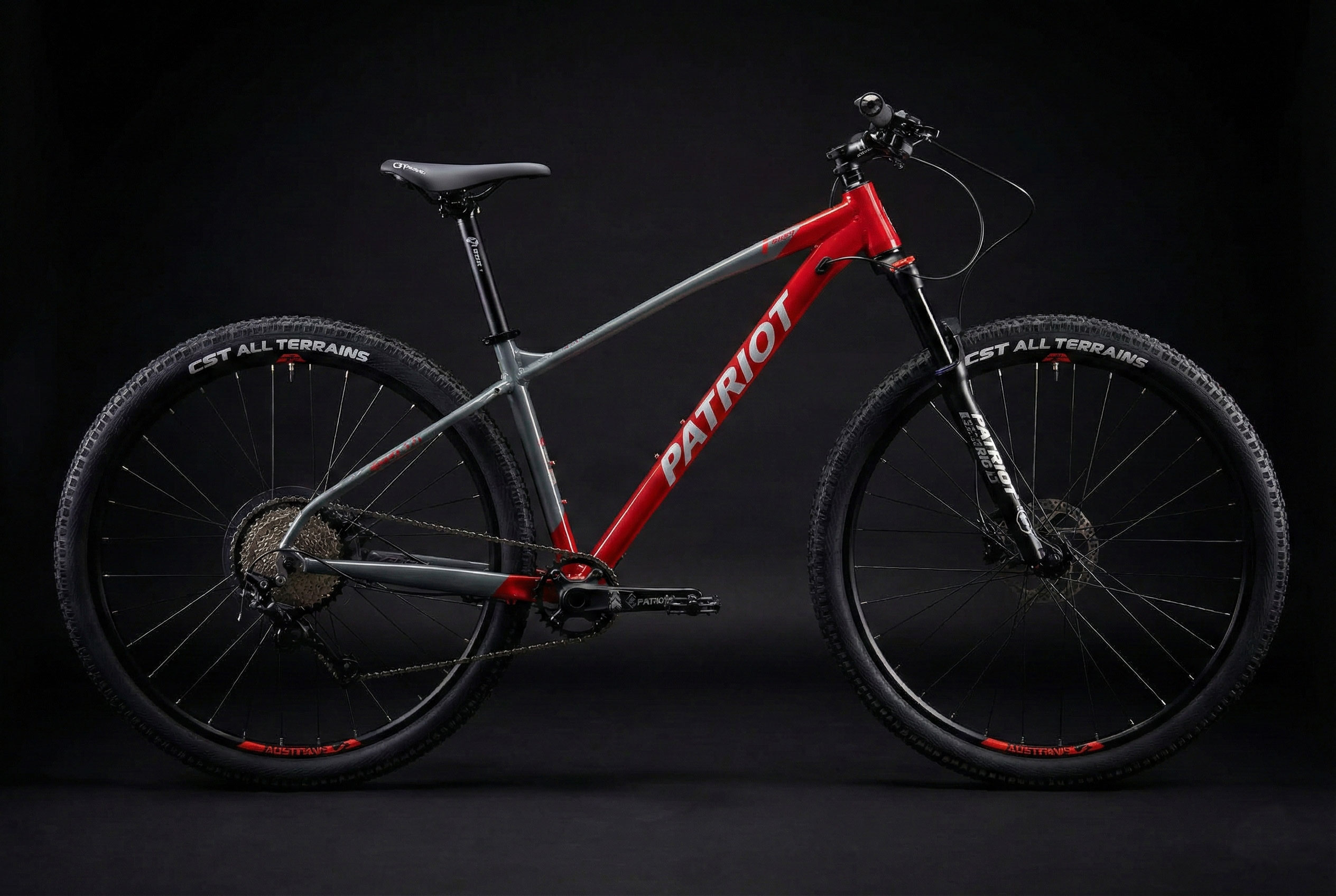

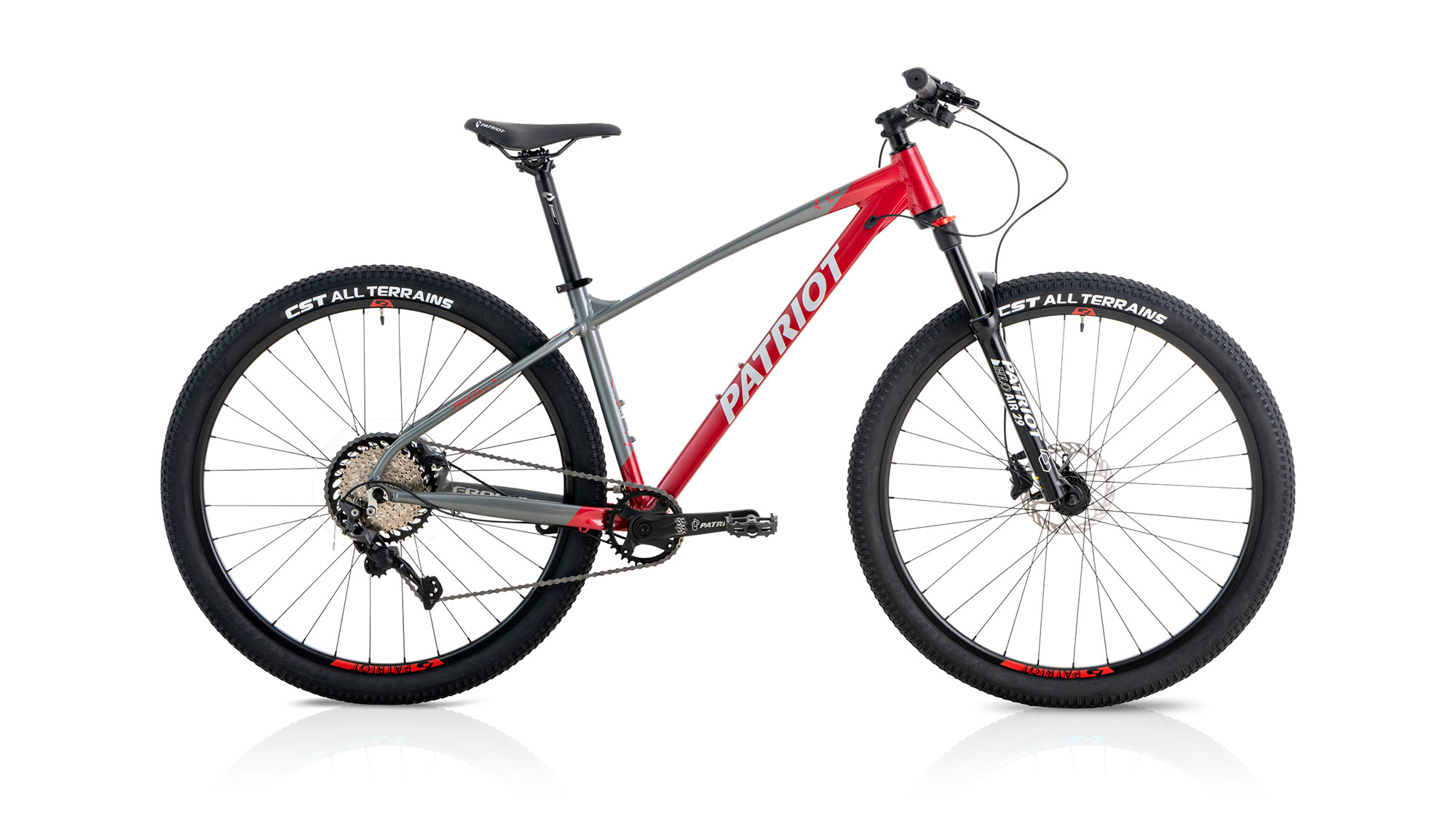

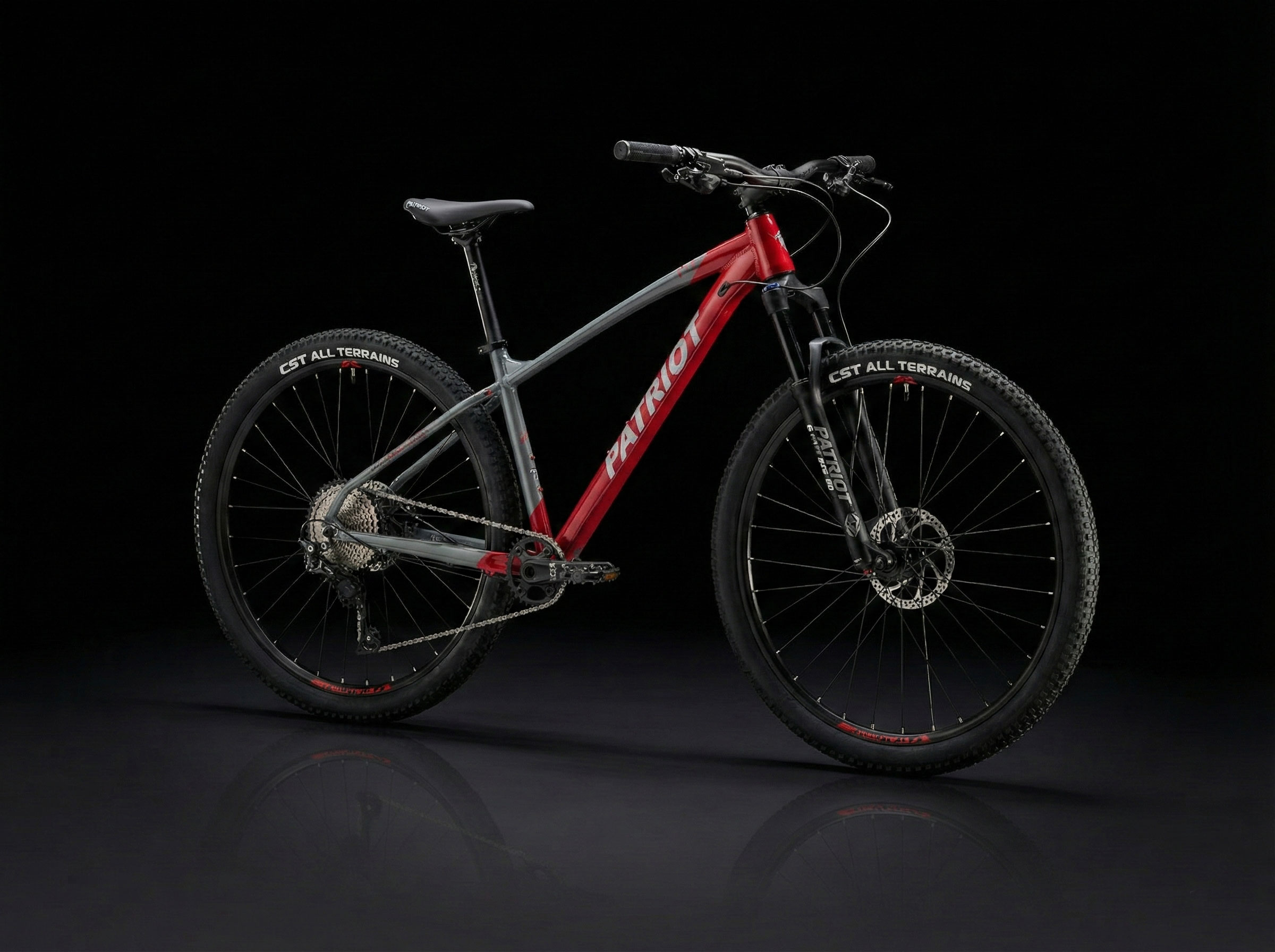

Crafted with Precision: Patriot Frontline Elite 29″
The Patriot Frontline Elite 29″ is built to deliver strength, agility, and endurance. Its 6061-T6 hydroformed aluminium frame ensures exceptional durability while keeping the bike light for agile climbs and quick accelerations. The internal cable routing provides a clean aesthetic and easy maintenance. Moreover, the tapered head tube and dropper post compatibility enhance rider stability across varied terrain.
Reliable Suspension for Confident Control
A PR-A30 HLO-AIR fork powers every ride with 120mm of travel and air-spring adjustability. This advanced suspension system absorbs shocks effectively, making rough trails smooth and manageable. With hydraulic lockout, you can easily switch from a trail to a road-ready setup without losing efficiency. Every bump feels controlled, and every descent feels steady.
Precision Engineering in the Cockpit
The cockpit design maximizes rider comfort and control. The ergonomic saddle with steel rails pairs with TPR lock-on grips for comfort during long rides. Alloy handlebars measure 720mm with a 9-degree backsweep, providing excellent leverage. The forged 7-degree rise stem keeps your position stable, ensuring fluid handling on technical routes.
Superior Stopping Power
Hydraulic X-Spark HD-M500 brakes deliver consistent braking strength in all weather conditions. With stainless steel 160mm rotors on both the front and rear, the braking system ensures dependable performance even under pressure. You stay in control, no matter how steep or unpredictable the trail gets
| Frame | Patriot 6061-T6 Hydroformed Aluminium tubeset, Internal routing, Dropper post compatible, Tapered Head Tube, 29″, 135mm QR |
|---|---|
| Fork | PR-A30 HLO-AIR, Alloy Crown, Alloy Leg, Air Spring, Hydraulic Lockout, 100mm QR, 120mm Travel |
| Saddle | Patriot Ergonomic, steel rails |
| Stem | Patriot forged Alloy, 31.8mm, 7-degree rise, S:70mm; M/L:80mm |
| Grips | Patriot Ergonomic, TPR, Lock-On 130mm |
| Handlebars | Patriot Alloy, 720mm width, 9-degree backsweep; 15mm rise, 31.8mm |
| Seatpost | Patriot Alloy, Double Bolt, 300 x 31.6mm |
| Seatpost Clamp | Patriot Alloy, 34.9mm, QR |
| Brakes | X-Spark HD-M500, Hydraulic, 2-Piston |
| Front Rotor | 160mm, 6-Bolt, Stainless Steel |
| Rear Rotor | 160mm, 6-Bolt, Stainless Steel |
| Rear Derailleur | Shimano Deore RD-M5120, 10/11-speed |
| Shift Levers | Shimano Deore SL-M4100R, 10-speed |
| Cassette | Pafeite, 11-46T, 10-speed |
| Chain | TEC P1004, 10-speed |
| Crankset | Patriot Forged Alloy, CNC Narrow/Wide Alloy Chainring 32T, 104mm BCD, 50mm Chainline, Length S:170mm; M/L:175mm |
| Bottom Bracket | Sealed Bearing Square Taper, BSA 73mm, Threaded |
| Rims | Patriot Alloy, Double Wall, 29″, 32 Hole, Presta Valve |
| Front Hub | Alloy, Sealed Bearing, 6-Bolt, 100mm QR, 32H |
| Rear Hub | Alloy, Sealed Bearing, 6-Bolt, 135mm QR, 32H |
| Front Tire | CST C1820, 29×2.35, Black |
| Rear Tire | CST C1820, 29×2.35, Black |
| Inner Tubes | CST, 29×1.9/2.35, 33mm Presta Valve |
| Spokes | Black, 14g |
