Precision in Motion. Performance in Design.
FrontLine comp 29inch .
Engineered for Performance. Built for Endurance

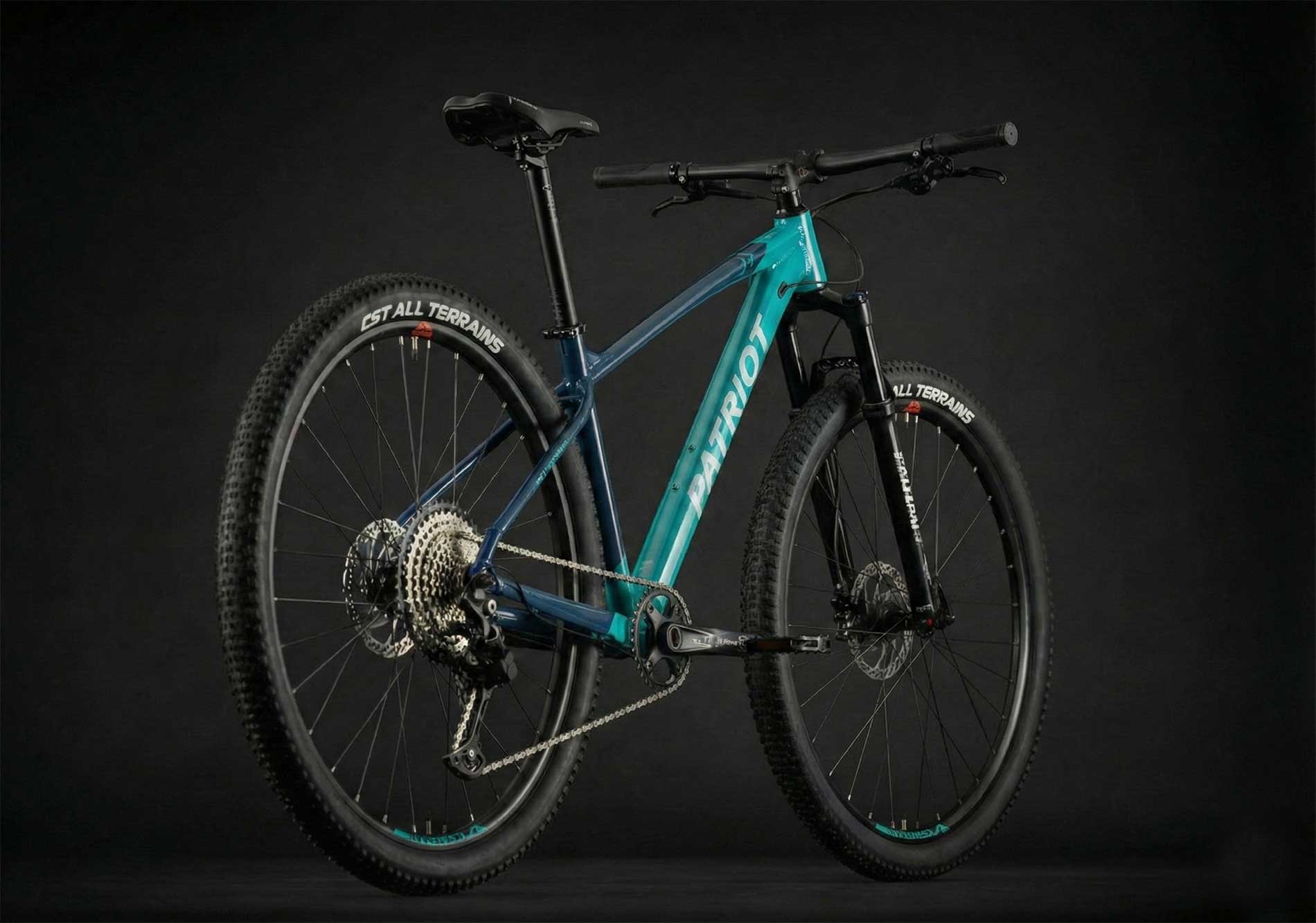

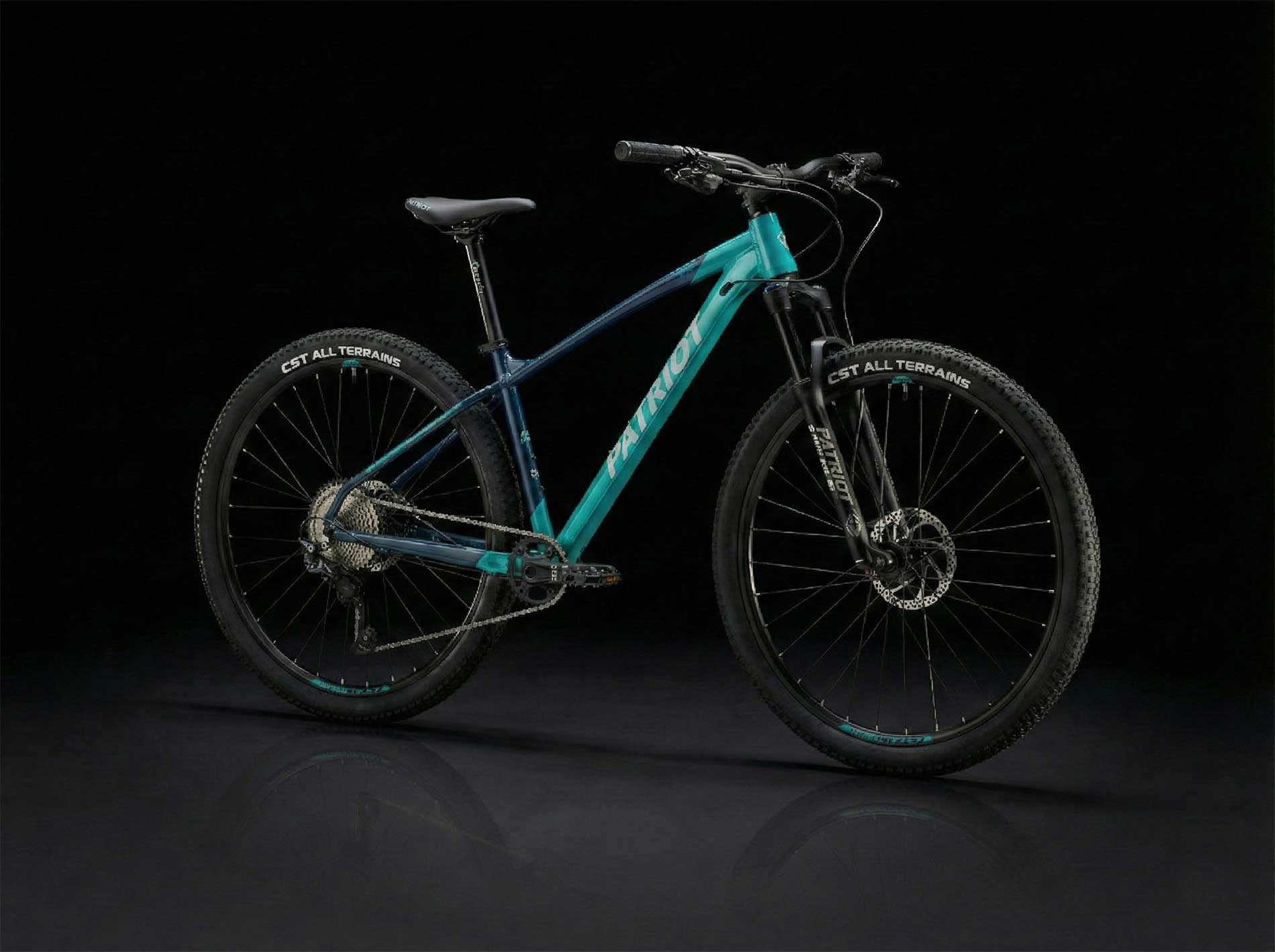

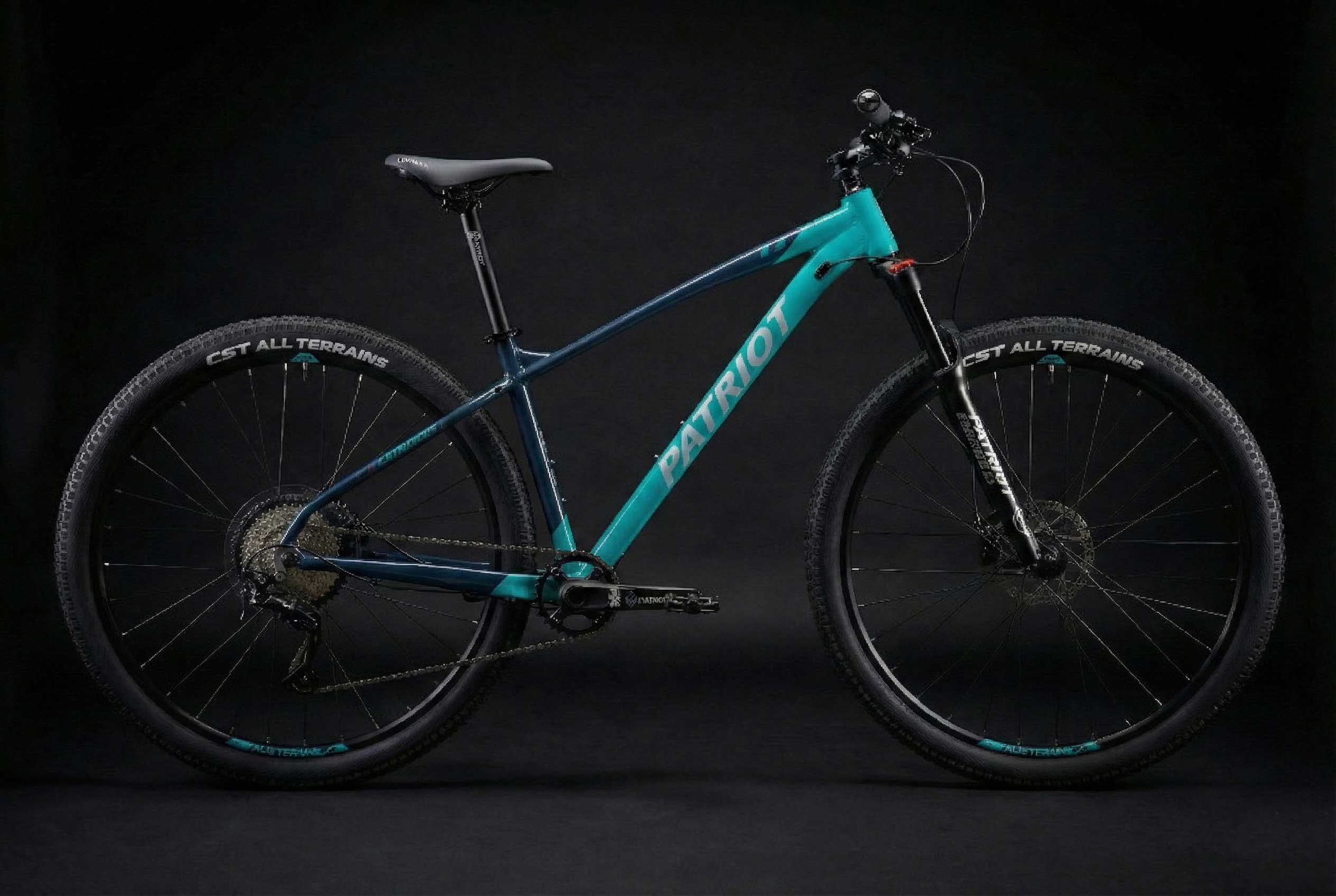

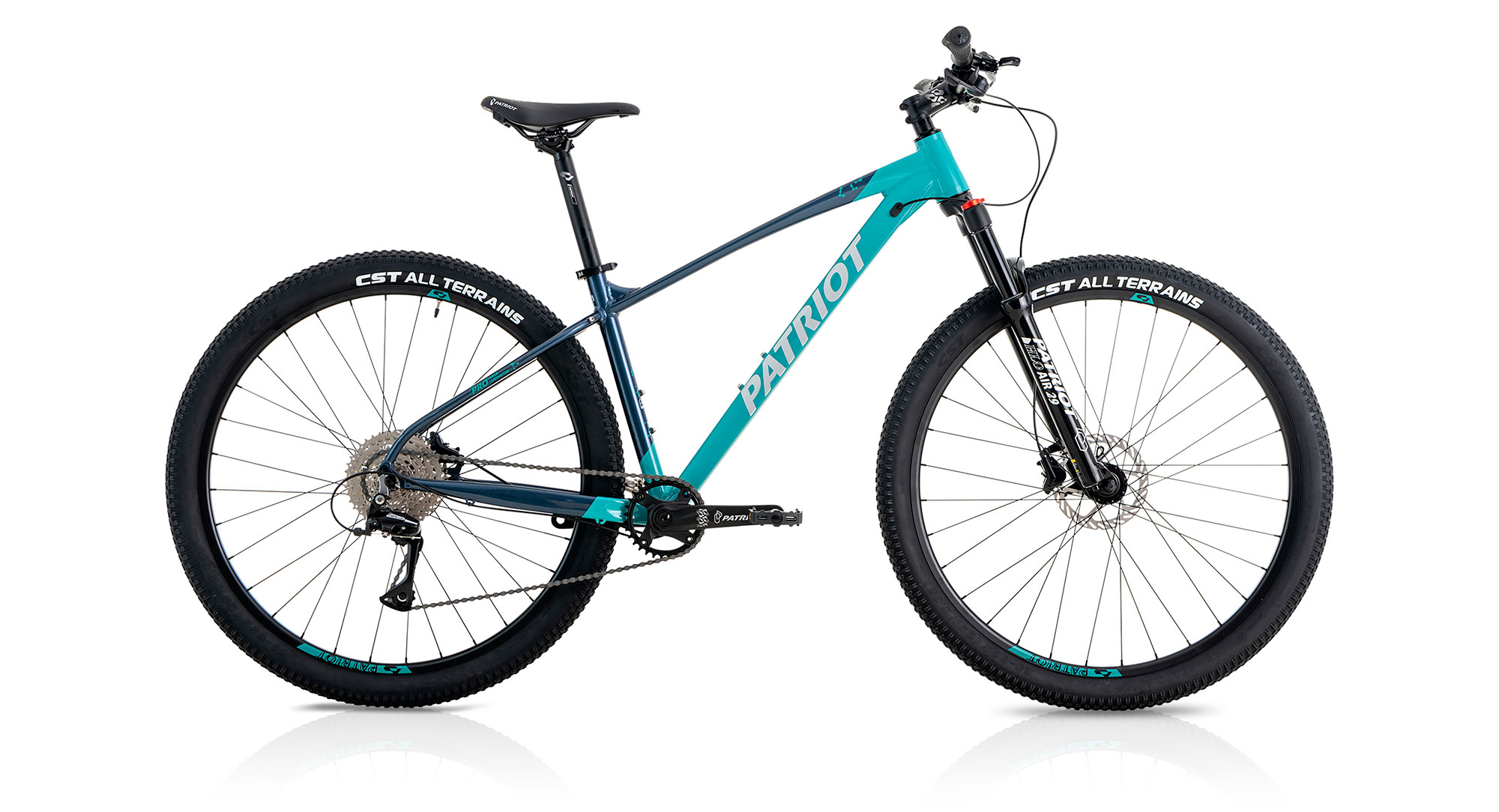

The Patriot Frontline Comp 29″ delivers confident trail performance with a durable hydroformed alloy frame, air-sprung suspension fork, and hydraulic disc brakes. Riders enjoy reliable Shimano 8-speed shifting, wide-range gearing, and tough 29-inch wheels for everyday adventures on gravel paths, singletrack, and weekend rides.
Built to balance strength with agility, the Frontline Comp offers responsive handling and stable geometry that inspires confidence on climbs, descents, and technical sections. The lightweight yet robust frame design ensures efficient power transfer, while the air-sprung fork absorbs bumps and trail chatter for a smoother, more controlled ride. Hydraulic disc brakes provide consistent stopping power in all conditions, giving riders the assurance to push further and ride harder.
Designed for versatility, this 29″ platform rolls effortlessly over rough terrain, maintaining momentum and traction across mixed surfaces. Whether you’re building endurance, exploring new routes, or tackling local trails, the Frontline Comp 29″ is engineered to deliver durability, precision, and performance — ride after ride.
- FEATURES

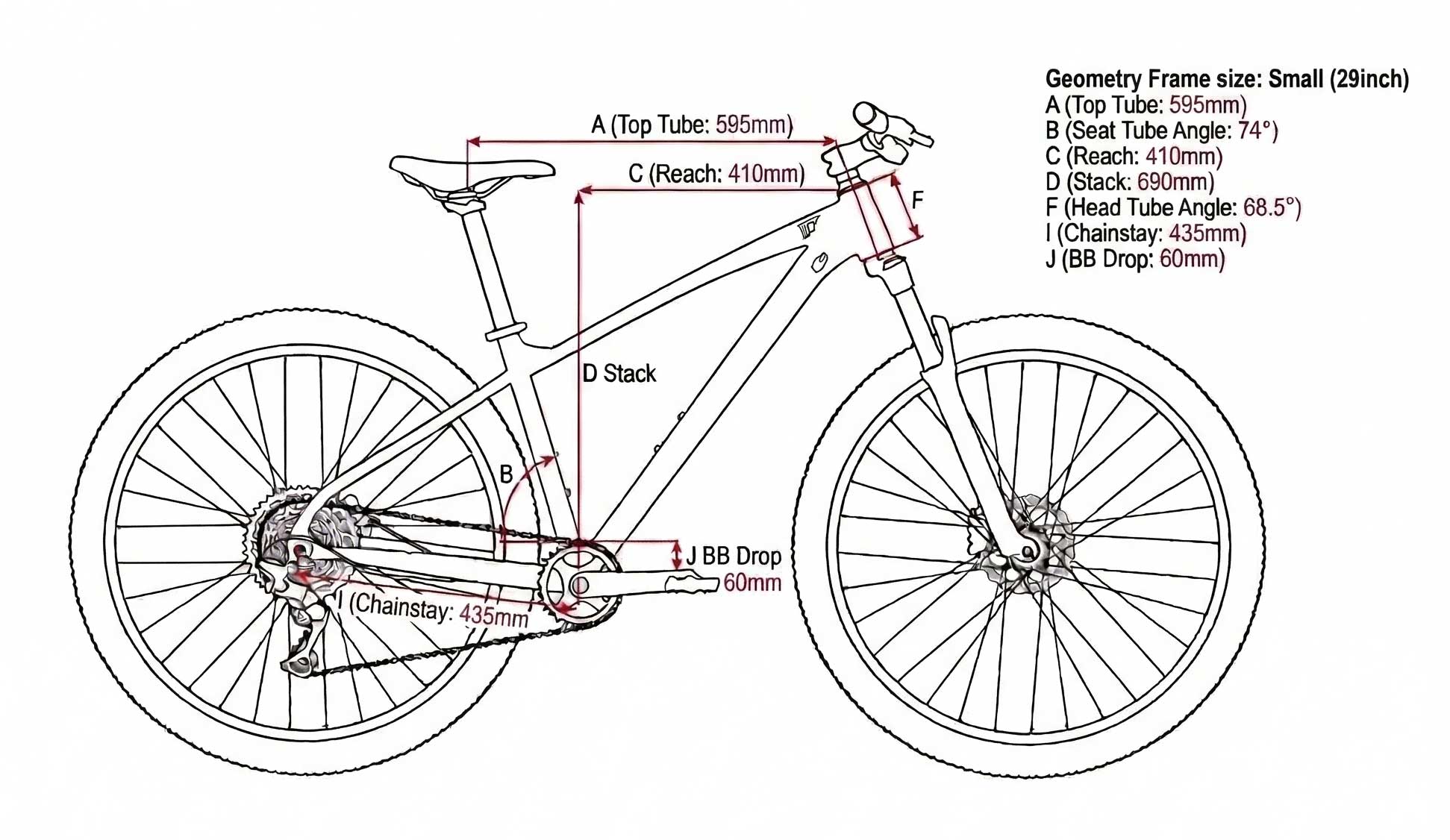

- GEOMETRY- SMALL

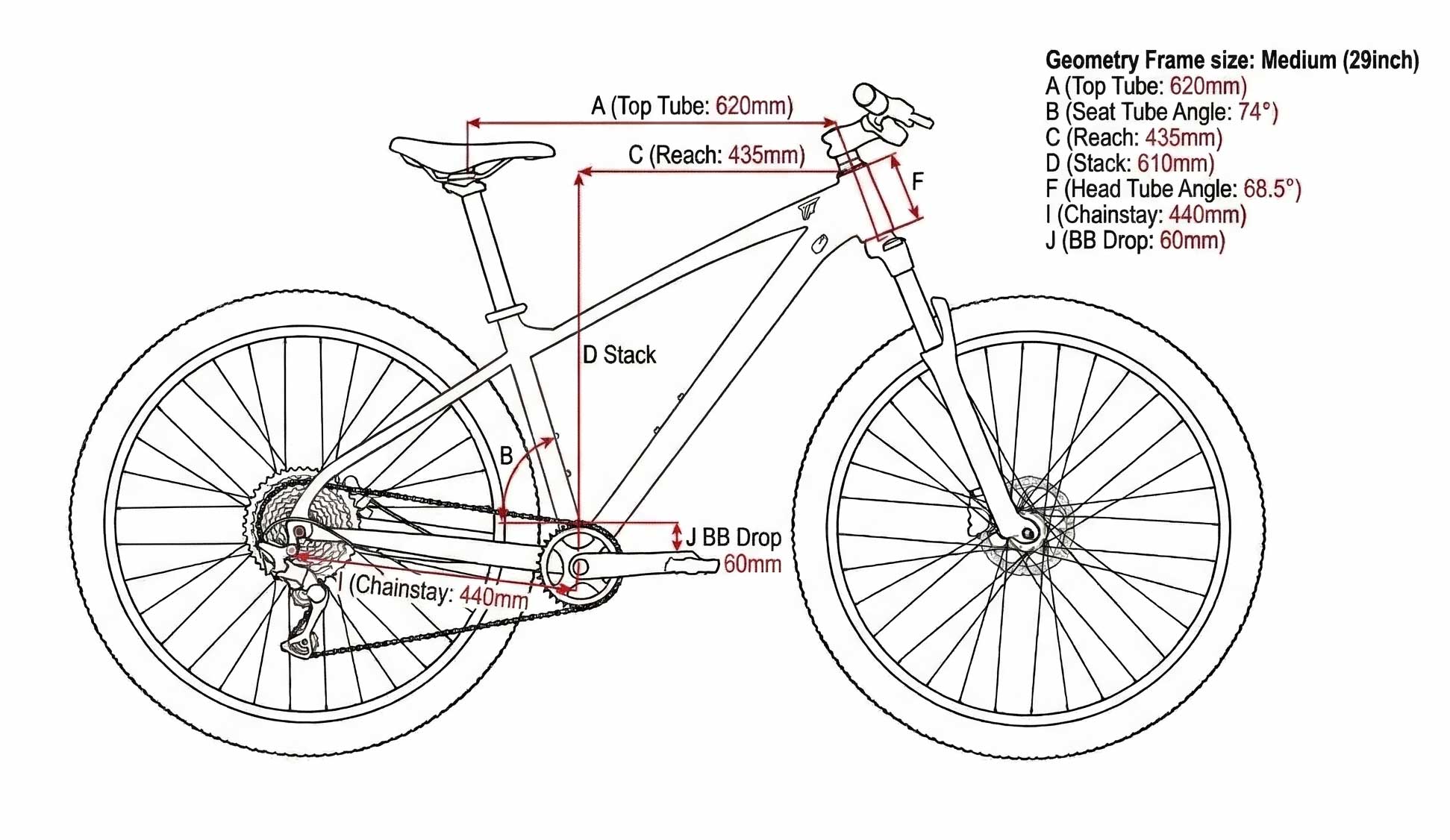

- GEOMETRY - MEDIUM

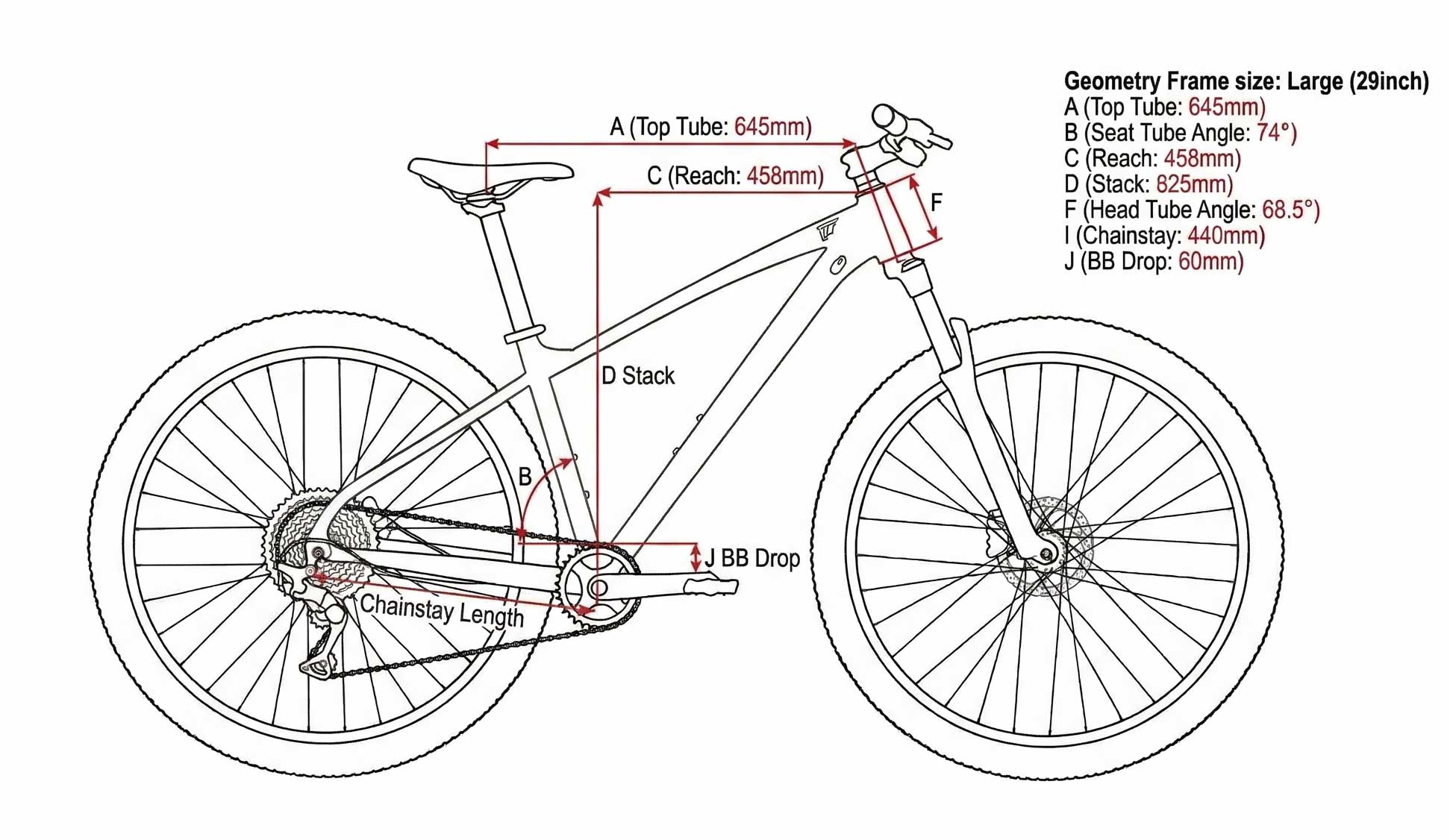

- GEOMETRY - LARGE
- SPECIFICATIONS
Trail-ready design: Patriot Frontline Comp 29″
The Patriot Frontline Comp 29″ features a 6061-T6 hydroformed aluminium frame for strength and responsive handling. Internal routing keeps cables protected and the bike looking clean. The tapered head tube boosts front-end stiffness for precise steering. Dropper post compatibility allows future upgrades for more confident descents.
Confident control with air suspension
A PR-A30 HLO-AIR fork with 120mm travel smooths rough trails and rocky paths effectively. Its air spring allows easy tuning for rider weight and terrain. Hydraulic lockout improves efficiency on climbs or smooth roads. As a result, riders maintain control and comfort across varied conditions.
Comfortable cockpit for long rides
The cockpit balances comfort and control on longer outings. An ergonomic Patriot saddle with steel rails supports stable pedalling. TPR lock-on grips improve hand security over bumps and descents. Wide 720mm alloy handlebars and a 7-degree rise stem enhance leverage and steering confidence.
Hydraulic braking for real stopping power
X-Spark HD-M500 hydraulic disc brakes provide strong, predictable power in dry or wet weather. Dual-piston calipers clamp 160mm stainless steel rotors front and rear. This setup offers reliable modulation for technical descents and emergency stops. Riders brake later and stay in control on steep terrain.
Durable drivetrain for everyday use
A Shimano Acera RD-M3020 rear derailleur teams with Altus SL-M315 shifters for smooth 8-speed changes. The 11–40T cassette and 32T narrow-wide chainring supply a wide range for climbs and flats. A sealed bearing square taper bottom bracket adds durability and low maintenance. This drivetrain suits riders who want reliability without complexity.
| Frame | Patriot 6061-T6 Hydroformed Aluminium tubeset, Internal routing, Dropper post compatible, Tapered Head Tube, 29″, 135mm QR |
|---|---|
| Fork | PR-A30 HLO-AIR, Alloy Crown, Alloy Leg, Air Spring, Hydraulic Lockout, 100mm QR, 120mm Travel |
| Saddle | Patriot Ergonomic, steel rails |
| Stem | Patriot forged Alloy, 31.8mm, 7-degree rise, S:70mm; M/L:80mm |
| Grips | Patriot Ergonomic, TPR, Lock-On 130mm |
| Handlebars | Patriot Alloy, 720mm width, 9-degree backsweep; 15mm rise, 31.8mm |
| Seatpost | Patriot Alloy, Double Bolt, 300 x 31.6mm |
| Seatpost Clamp | Patriot Alloy, 34.9mm, QR |
| Brakes | X-Spark HD-M500, Hydraulic, 2-Piston |
| Front Rotor | 160mm, 6-Bolt, Stainless Steel |
| Rear Brake | X-Spark HD-M500, Hydraulic, 2-Piston |
| Rear Rotor | 160mm, 6-Bolt, Stainless Steel |
| Rear Derailleur | Shimano Acera RD-M3020, 7/8-speed |
| Shift Levers | Shimano Altus SL-M315, 8-speed |
| Cassette | Sutek, 11-40T, 8-speed |
| Chain | TEC M50, 8-speed |
| Crankset | Patriot Forged Alloy, CNC Narrow/Wide Chainring 32T, 104mm BCD, 50mm Chainline, Length S:170mm; M/L:175mm |
| Bottom Bracket | Sealed Bearing Square Taper, BSA 73mm, Threaded |
| Rims | Patriot Alloy, Double Wall, 29″, 32 Hole, Presta Valve |
| Front Hub | Alloy, Sealed Bearing, 6-Bolt, 100mm QR, 32H |
| Rear Hub | Alloy, Sealed Bearing, 6-Bolt, 135mm QR, 32H |
| Front Tire | CST C1820, 29×2.35, Black |
| Rear Tire | CST C1820, 29×2.35, Black |
| Inner Tubes | CST, 29×1.9/2.35, 33mm Presta Valve |
| Spokes | Black, 14g |
